Connecting 3rd party devices

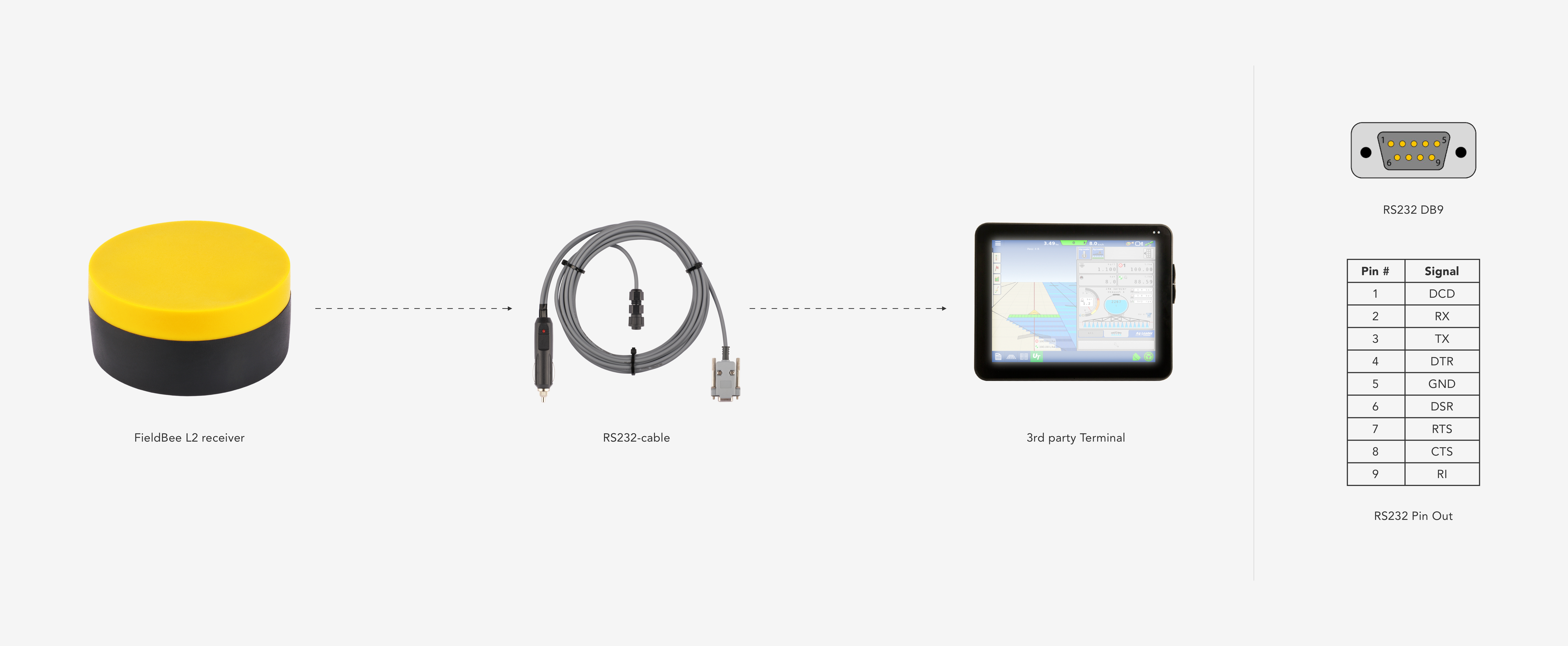

Here we have prepared information about FieldBee receiver compatibility with 3rd party terminals.

Terminal requirements:
  • RS232 DB9 serial port ( 9 pins)
  • RTCM 3.0-3.* Format
  • baud rate: 115200, 57600 und 38400 bps
  • NMEA0183 messages: GGA, GST, RMC, VTG, ZDA. !The GSA message has been planned to be added in Q2 2022!
  • FieldBee transfers data with a 10Hz update rate.
