Order FieldBee Autosteer system

delivery in 2 weeks

FieldBee RTK GNSS Base Station

Play

RTK signal that you own

Works with Autosteer

Reach maximum accuracy

Use with multiple receivers

Price per request

Additional benefits:

Remote help with setup
2 years warranty
30 days money-back guarantee

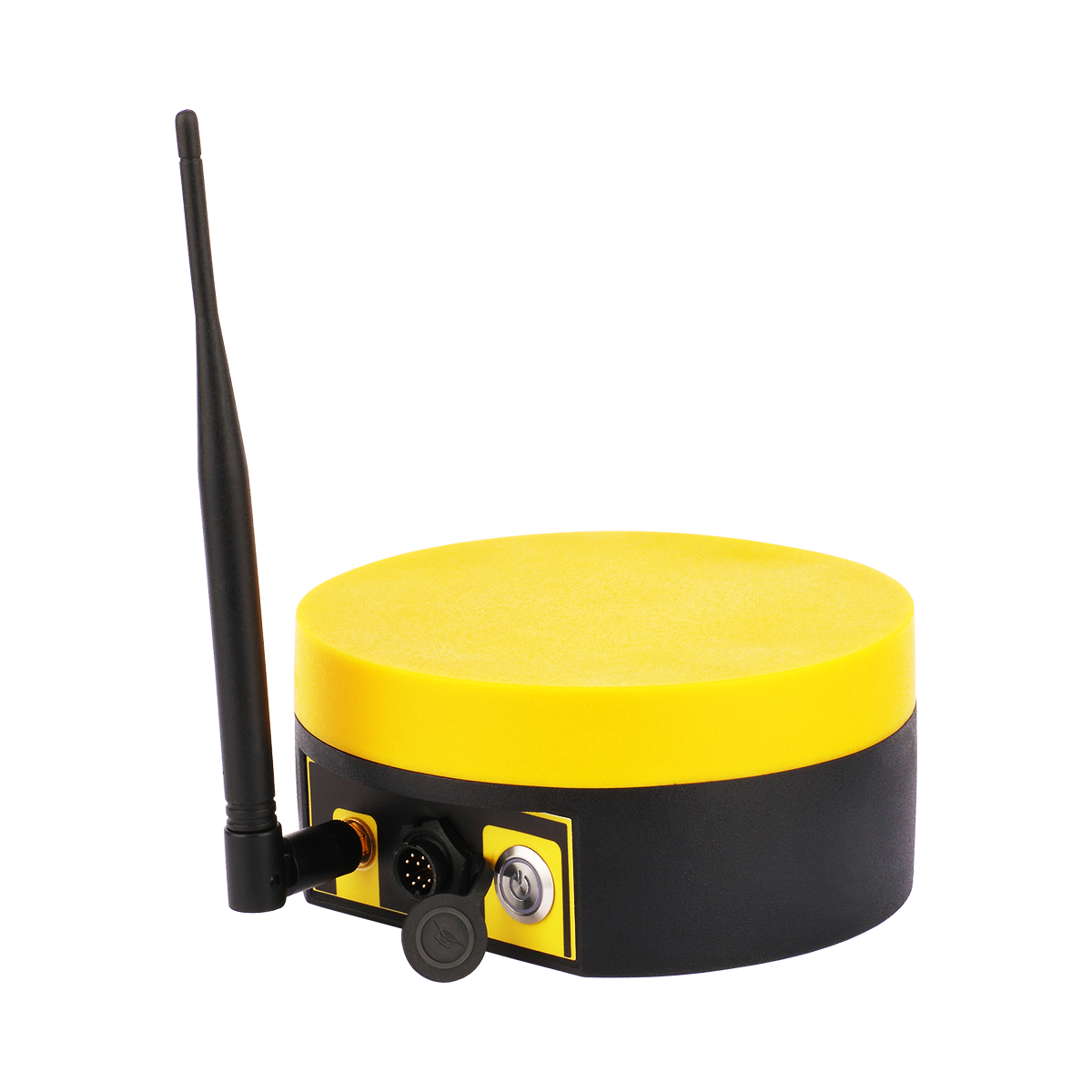

FieldBee RTK GNSS L1 Base Station

FieldBee RTK L1 Base Station is an ideal solution for farmers with flat fields without high trees and power lines.

It is a smart sensor that transmits RTK correction with a radius of 2 km via radio and 10 km via the internet, providing +/- 2 cm accuracy in the field.

How to use it? Place the RTK base station on your house’s roof/tripod, connect the L1 receiver to your app via Bluetooth, and control your work via smartphone/tablet.

Price per request

FieldBee RTK GNSS L2 Base Station

FieldBee RTK L2 Base Station is made to achieve the highest precision on fields with hills and signal obstructions.

L2 Base Station transmits RTK correction on much larger radiuses of 20+ km via the internet and provides even higher +/- 1 cm accuracy in the field.

Has a more stable signal and better work with auto steer.

How to use it? Place the RTK L2 base station on a tripod or the roof of your house, place the L2 receiver on your tractor and connect it via WiFi to the app.

Price per request

Technical comparison of RTK GNSS L1 and RTK L2 Base Stations

Products

L1 Base Station

L2 Base Station

Range of correction transmission

10+ km via Internet
2+ km via radio (LoRa)

20+ km via Internet
2.5+ km via Radio (optional)

Time to receive first RTK signal

From 3 min

< 60 sec

Time to recover RTK signal

3 min

< 30 sec

Accuracy

RTK ±2 cm

RTK ±1 cm

Signals

GPS +GLONASS

GPS, GLONASS, BeiDou and Galileo

Prices

RTK L1 Base station

Price per request

*excluding VAT

RTK L2 Base station

Price per request

*excluding VAT

FieldBee RTK GNSS Base Station

Technical comparison of RTK GNSS L1 and RTK L2 Base Stations
